Machining

Vertical machining centres (VMCs), also known as milling, relies on rotary cutters to remove metal from a workpiece, which employs a spindle with a vertical orientation.

CNC milling is a specific form of computer numerical controlled (CNC) machining in which the milling movements are programmed into a computer or CAD system before the milling takes place. In addition, Ancillary equipment is also available to increase the flexibility and capability of these machines, including spindle speeders, angle heads, tool- and part-probes, quick-change work holding devices, and rotary indexers to enable 4th axis machining work.

At Zenfin we provide milling operations and services of ferrous and non-ferrous metals and in the manufacturing of small and big precision metal parts. in the field of automatic turning, and mechanics of precision for the Automobile / Oil & Gas / Engineering / Switchgear / Agricultural industries. The plant is equipped with advanced milling machines with 4th axis enabled.

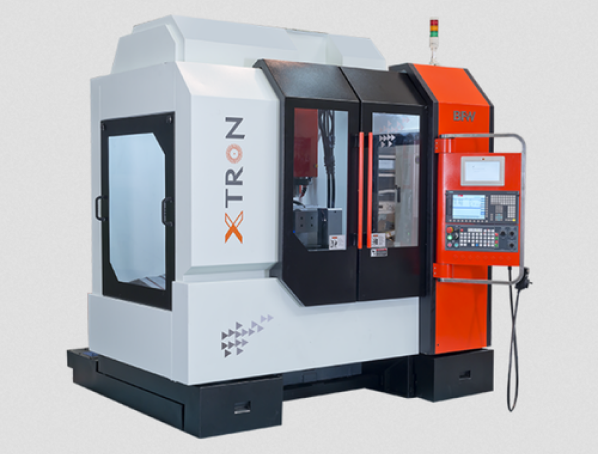

No. of Machine : 5 NOS

Table longitudinal travel (X - Axis) 580 mm
Table cross travel (Y - Axis) 400 mm
Headstock travel (Z - Axis) 400 mm
Spindle nose face to table top 150 - 550 mm
Increased daylight area with column height block(Optional) 400 mm
Distance from Floor to table 975 mm
BSpindle center - column front distance 480 mm

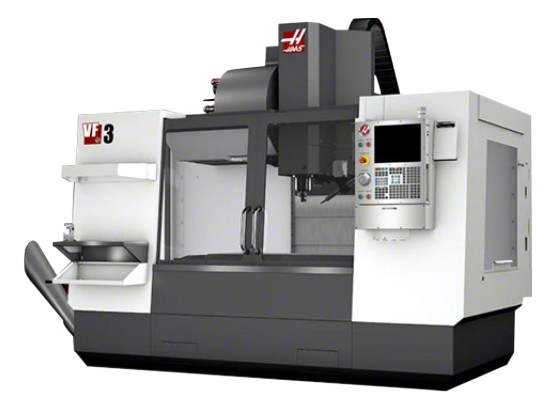

X axis 1016 mm
Y axis 508 mm
Z axis 635 mm
Table Size X 1219 mm
Table Size Y 457 mm
Spindle BT- 40 ,8100 RPM
Spindle driver 22.3kw
Spindle Max Torque 122 NM @ 2000 rpm
ATC 24 Tool Changer station
Controller Fanuc / Siemens
Feed 25.4 m / Min

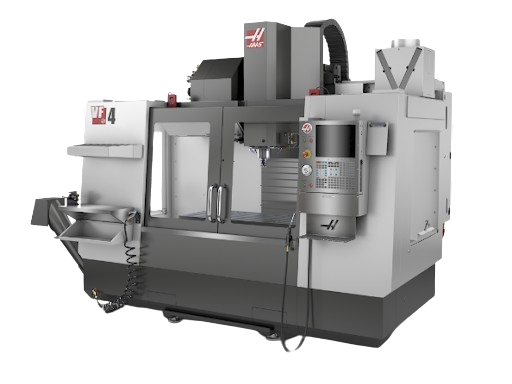

X axis 1016 mm
Y axis 508 mm
Z axis 635 mm
Table Size X 1219 mm
Table Size Y 457 mm
Spindle BT- 40 ,8100 RPM
Spindle driver 22.3kw
Spindle Max Torque 122 NM @ 2000 rpm
ATC 24 Tool Changer station
Controller Fanuc / Siemens
Feed 25.4 m / Min
