A Power Press Machine is used for cutting metal in a particular shape. It is a machine with a controlled system that is used for processing various types of sheet metal. A multipurpose machine, it is used for shaping and cutting at the same time. This machine is mainly used in metal.
It’s one of the most adaptable sheet metal machines on the market, and it’s employed in a variety of heavy industrial applications. Previously, manually shaping the metal sheet required a considerable deal of labor and force.
But with the help of a Power press machine, it will be easier to cut, bend, press, and form the metal sheet into different shapes and sizes by applying a high amount of pressure
| Model | SNX - 45 |
| Serial No. | 13155/06/2024 |
| Capacity | 45 T0N |
| Cushion Capacity | 3.5 T0N |
| Main Motor | 7.5 HP * 1440 RPM |
| Stroke Length | 8 - 90 mm |
| Stroke / MIN. | 50 - 80 SPM |
| DIE Height | 270 mm |
| Slide Adjustment | 60 mm |
| Slide Area | 430 * 350 mm |
| Bolster Area | 840 * 440 mm |
| Pad Area | 320 * 210 mm |

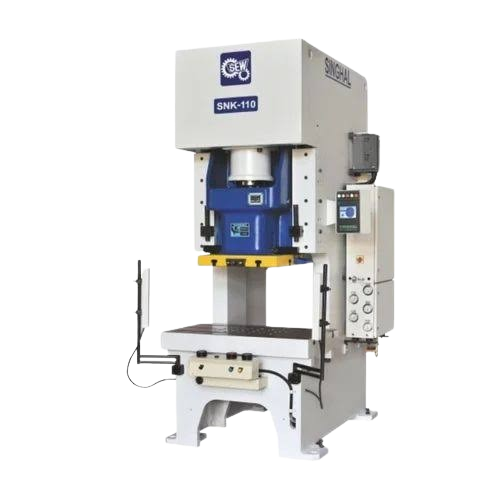

| Model | SNX - 110 |
| Serial No. | 13096/05/2024 K |
| Capacity | 110 T0N |
| Stroke Length | 8 - 125 mm |
| Stroke / MIN. | 35 - 60 SPM |
| DIE Height | 360 mm |
| Slide Adjustment | 90 mm |
| Slide Area | 650 * 520 mm |
| Bolster Area | 1150 * 680 mm |
| Cushion Capacity | 8 TON |
| Pad Area | 480 * 300 mm |
| Main Motor | 15 HP * 1440 RPM |
| Model | SNX - 63 |
| Serial No | 13003/03/2024 |
| Capacity | 63 TON |
| Stroke Length | 8 - 100 mm |
| Stroke / Min | 40-70 SPM |
| DIE Height | 300 mm |
| Slide adjustment | 70 mm |
| Slide area | 500 x 400 |
| Bolster area | 900 x 520 mm |
| Cushion Capacity | 6 T0N |
| Pad area | 380 x 260 mm |
| Main Motor | 10 HP x 1440 RPM |
